| الاسم التجاري: | Winsmart |
| رقم النموذج: | SMTL600 |
| مو: | 1 مجموعة |
| السعر: | USD1-150K/set |
| تفاصيل التغليف: | حالة الخشب الرقائقي |
| شروط الدفع: | L/C ، T/T ، Western Union |

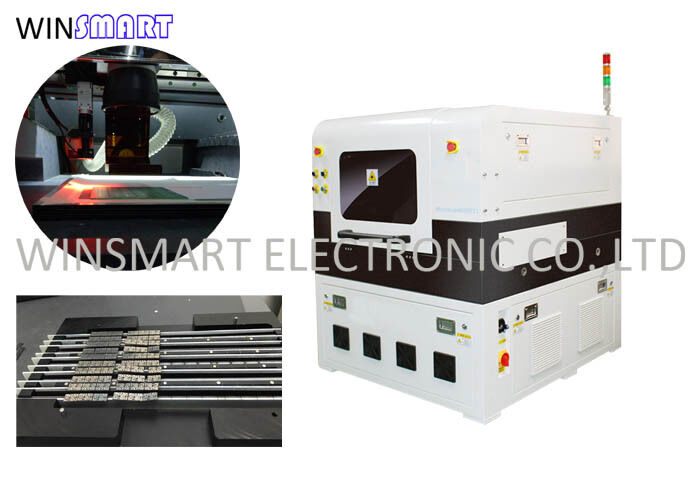

355nm Solid-state Inline Laser Cutting Machine For Customized Working Area
Inline PCB Laser Cutting Machine Introduction:
An Inline PCB Laser Cutting Machine is a fully automated, high-precision system designed to cut or depanel printed circuit boards (PCBs) using laser technology. Unlike standalone systems, inline machines are integrated directly into a SMT (Surface Mount Technology) production line, allowing for automated board loading, cutting, and unloading without manual intervention.
This machine is ideal for high-volume, high-mix PCB manufacturing where precision, cleanliness, and speed are critical.
Inline PCB Laser Cutting Machine Specification:
| Laser Type | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Brand | Optowave |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Scanning Speed | 2500mm/s (max) |
| Working Field | 40mmх40mm |
| Working Table | One |
| Working Area | 300x400mm |
| PCB Type | V-cut and Tab |
| PCB Material | FR4, FPC |
| PCB Thickness | 0.2-3mm |
| CCD Camera | Germany Brand |
| Table Platform | Marble |
| Cooling Mode | Water cooler |
| Exhaust System | Yes |
| Service | On-site installation and training |
| Warranty | 12 months |
| Machine Condition | New |
| Positioning | Fixture |
Inline PCB Laser Cutting Machine Functions:
Laser Depaneling / Cutting: Precisely separates multiple PCBs from a large panel using laser energy.
Automated Board Handling: Conveyor-based loading and unloading of PCBs without manual input.
Vision-Based Alignment: Built-in camera system scans fiducials for precise positioning and cutting.
Barcode Scanning / Traceability (optional):Reads product codes for tracking and automatic recipe selection.
Gerber/DXF File Interpretation: Supports programming from standard PCB design files for dynamic cut path generation.
Real-Time Monitoring: Tracks cutting parameters and system status for quality control.
Inline PCB Laser Cutting Machine Advantages:
Fully Automated Workflow: Reduces labor, increases throughput, and supports 24/7 unattended use.
Automotive ECU and sensor boards
Medical device electronics
LED lighting modules
Rigid, flexible, and rigid-flex PCBs
High-reliability aerospace and defense electronics
|
